The Light Source (MTPTR12B) Mega-Truss Pick

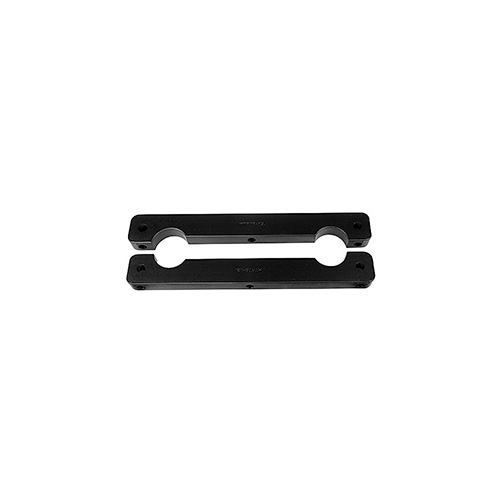

- The Light Source Mega-Truss Pick is two 1" x 2" × 15" 6061T-6 aluminum bars CNC machined with pockets to support one piece of 12" truss. The Mega-Truss Pick will suspend up to one ton of truss load when the Mega-Truss Pick is secured by two customer supplied 1/2" threaded rods, or two 1/2" forged steel shoulder eyebolts fastened through the outside support holes. The two 1/2" threaded rods run through the both of the vertical holes on the Truss Pick. All of the holes are through holes without threading. The load is held in place by nuts and washers top and bottom. Use nyloc nuts with a USS washer for the bottom connection. Use regular nuts with a lockwasher and USS washer for the top threaded rod truss pick connection.
