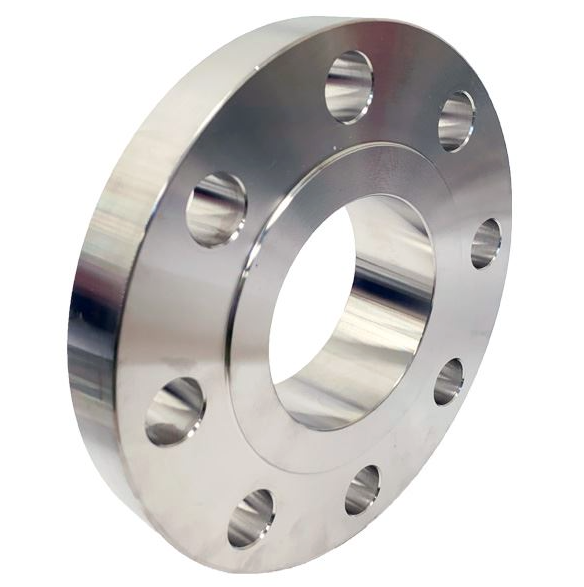

ANSI 300 R/F Slip On Flange SS316
- Description CL300 R/F SLIP ON FLANGE ASTM A182 F316L Features: Material: SS316/316L Piping Class: CL300 Dimensional: ASME B16.5 ANSI 300 Slip On Weld Flange Stainless Steel 316 ASME B16.5 DN mm Nominal Pipe Size Inch Outside Diameter of Flange O (mm) Flange Thickness min C (mm) Diameter of Hub X (mm) Insude Diameter B mm Length Through Hub mmY Diameter of Rised Face R mm Height of Raised Face f mm Bolt Circle Diameter (mm) Bolt Hole Diameter (mm) No of Holes Weight (kg/piece) 15 1/2 95.2 14.2 38.10 22.4 14.2 35.10 1.6 66.55 15.7 4 0.75 20 3/4 117.3 15.7 47.70 27.7 14.2 42.90 1.6 82.50 19.0 4 1.26 25 1 123.9 17.5 53.80 34.5 15.7 50.90 1.6 88.90 19.0 4 1.52 32 1.1/4 133.3 19.0 63.50 43.2 19.1 63.50 1.6 98.50 19.0 4 2.03 40 1.1/2 155.4 20.6 69.85 49.5 20.6 73.15 1.6 114.30 22.3 4 2.89 50 2 165.1 22.3 84.00 62.0 23.9 91.90 1.6 127.00 19.0 8 3.40 65 2.1/2 190.5 25.4 100.00 74.7 26.9 104.60 1.6 149.30 22.3 8 5.17 80 3 209.5 28.4 11.30 90.7 28.4 127.00 1.6 168.10 22.3 8 6.93 100 4 254.0 31.7 146.00 116.1 31.8 157.20 1.6 200.10 22.3 8 11.20 125 5 279.4 35.0 177.80 143.8 35.1 185.70 1.6 234.90 22.3 8 15.10 150 6 317.5 36.5 206.20 170.7 38.1 215.90 1.6 269.70 22.3 12 19.10 200 8 381.0 41.1 260.30 221.5 42.9 269.70 1.6 330.20 25.4 12 29.90 250 10 444.5 47.7 320.50 276.3 47.8 323.90 1.6 387.30 28.4 16 42.70 300 12 520.7 50.8 374.60 327.1 53.8 381.00 1.6 450.80 31.7 16 61.80
