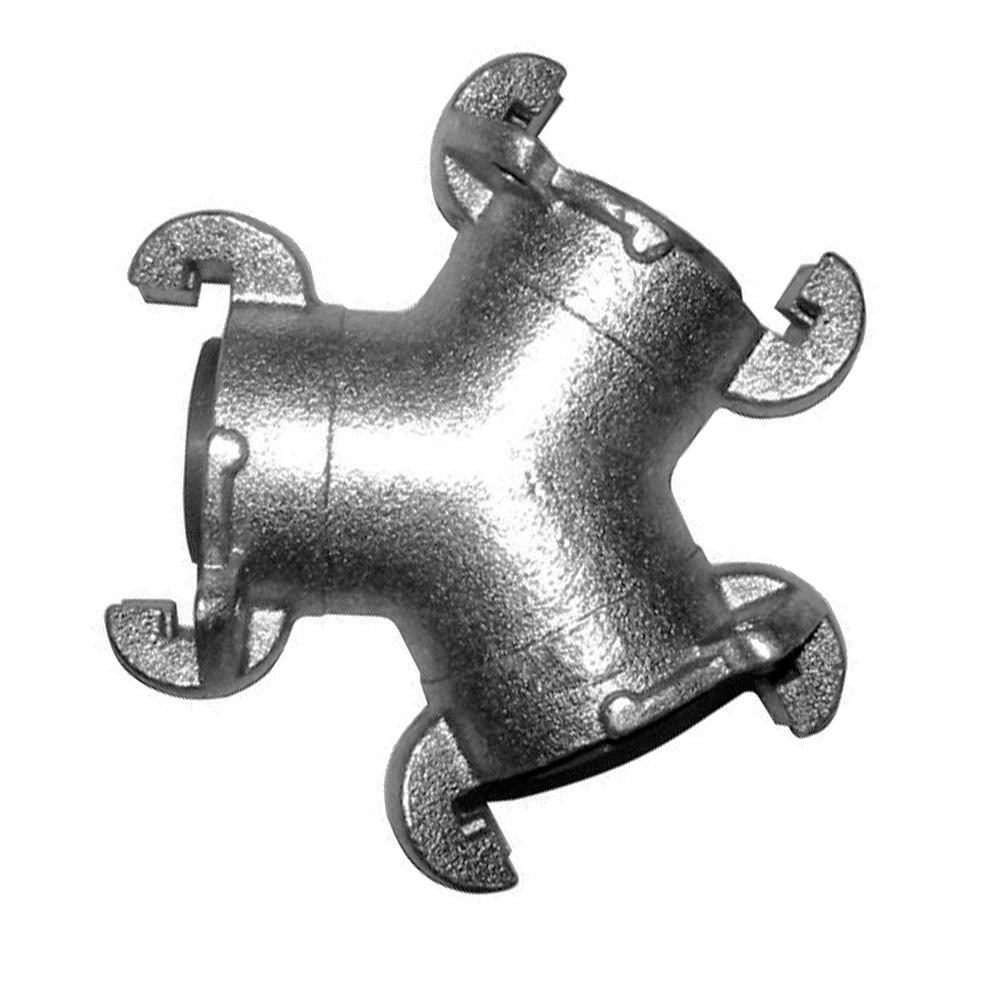

Minquip Claw Coupling (Type S) – Three Way Connector
- Description Claw Coupling Type S – Three Way Claw Coupling are universal hose coupling that provide quick, safe and reliable connections. Claw couplings are designed with a common or universal claw which enables differing hose sizes and nominal bore sizes to be connected. Claw couplings are most commonly used for conveying air and water, and not to be used for steam applications Manufactured conforms to AS 2660-1991 Reliable quick connect coupling for transfer of water and air under pressure Standard Natural Rubber seal installed Not suited for use with steam Temperature range: -29 to 71 Deg celcius Working pressure: 17.5 Bar as per AS2660/A requirement for air and water. Note: Internal claw distance = 45-74-117mm (different for each DN). Not interchangable with Express, Geka couplings and with other compressed air claw couplings (Type A, type B) TYPE S – CLAW THREE WAY (AUSTRALIAN TYPE) ITEM CODE CLAW DISTANCE (Internal) mm CLAW DISTANCE (External) mm MATERIAL WEIGHT (kg) 6302.04.25 45 68 Steel Plated 0.722 6302.04.50 74 115 Steel Plated
