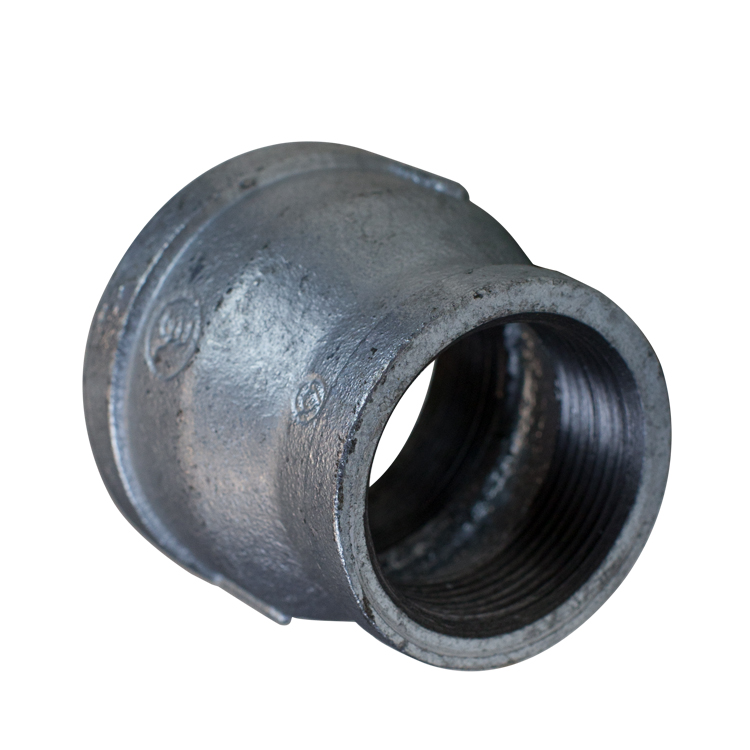

Galmal Reducing Socket BSP Thread Pipe Fittings
- Description Galvanised Malleable Reducing Socket BSP Thread Application: General low pressure air and water Material: Malleable Cast Iron to ASTM A-197, ASTM A47 Design standard: EN 10242 : 1994 Suitable for water application used in general, irrigation and rural services, compressed air pipes and fuel and gas lines utilities Working Pressure: 150PSI Plating Standard: ISO 1461 – Hot dip galvanised coating on fabricated iron and steel articles Thread: ISO 1 – Pipe thread where pressure-tight joints are made on the thread Comply with Australian Standards GAL MAL – REDUCING SOCKET SKU IMPERIAL SIZE A (mm) WEIGHT (kg) 7603.14.1508 1/2″ x 1/4″ 32 0.05 7603.14.1510 1/2″ x 3/8″ 32 0.07 7603.14.2010 3/4″ x 3/8″ 37 0.10 7603.14.2015 3/4″ x 1/2″ 39 0.10 7603.14.2515 1″ x 1/2″ 45 0.14 7603.14.2520 1″ x 3/4″ 45 0.16 7603.14.3215 1. 1/4″ x 1/2″ 50 0.20 7603.14.3220 1. 1/4″ x 3/4″ 50 0.21 7603.14.3225 1. 1/4″ x 1″ 50 0.23 7603.14.4015 1. 1/2″ x 1/2″ 55 0.24 7603.14.4020 1. 1/2″ x 3/4″ 55 0.25 7603.14.4025 1. 1/2″ x 1″ 55 0.26 7603.14.4032 1. 1/2″ x 1. 1/4″ 55 0.30 7603.14.5015 2″ x 1/2″ 65 0.36 7603.14.5020 2″ x 3/4″ 65 0.38 7603.14.5025 2″ x 1″ 65 0.40 7603.14.5032 2″ x 1. 1/4″ 65 0.43 7603.14.5040 2″ x 1. 1/2″ 65 0.47 7603.14.6540 2. 1/2″ x 1. 1/2″ 65 0.94 7603.14.6550 2. 1/2″ x 2″ 65 0.70 7603.14.8040 3″ x 1. 1/2″ 80 0.79 7603.14.8050 3″ x 2″ 80 0.81 7603.14.8065 3″ x 2. 1/2″ 80 0.86 7603.14.9450 4″ x 2″ 94 1.30 7603.14.9465 4″ x 2. 1/2″ 94 1.32 7603.14.9480 4″ x 3″ 94 1.42
